BOOM LIFT 85' STICK 4X4

Key: 24598#01
Manufacturer: GENIE
Model: S-85
Sale Price: $24,000.00
Comments:

2008 GENIE S-85 BOOM LIFT
HOURS: 4800
SALE: $24000.00
Complete with fresh Annual Inspection and Fresh NDT Inspection
Specifications for S-85
Height, working maximum 91 ft 27.7 m
Height, platform maximum 85 ft 25.9 m
Height, stowed maximum 9 ft 2 in 2.79 m
Horizontal reach maximum 77 ft 5 in 23.6 m
Width 8 ft 2.44 m
Length, stowed 40 ft 7 in 12.4 m
Maximum load capacity 500 lb 227 kg - 6 foot platform
Maximum load capacity 500 lb 227 kg - 8 foot platform
Maximum wind speed 28 mph 12.5 m/s
Wheelbase 9 ft 0 in 2.7 m
Turning radius (outside) 23 ft 7.0 m
Turning radius (inside) 10 ft 8 in 3.3 m
Turntable tailswing 3 ft 81/2 in 1.13 m
Turntable rotation (degrees) continuous
Controls 12V DC proportional
Platform dimensions, 6 foot 72 in x 30 in ,(length x width) 1.8 m x 76 cm
Platform dimensions, 8 foot 96 in x 36 in, (length x width) 2.4 m x 91 cm
Platform leveling self-leveling
Platform rotation 160
AC outlet in platform standard
Hydraulic pressure, maximum 3000 psi - (boom functions) 207 bar
System voltage 12V
Foam Filled Tires
Ground clearance 11 in 28 cm
Fuel tank capacity 33 gallons 125 liters
Weight See Serial Label - (Machine weights vary with option configurations)
Airborne noise emissions 80 dB - Maximum sound level at normal operating workstations. (A-weighted)
Drive speeds
Drive speed, stowed 3.5 mph 5.6 km/h, 40 ft/7.8 sec 12.2 m/7.8 sec
Drive speed, 0.68 mph 1.1 km/h, raised or extended 40 ft/40 sec 12.2 m/40 sec
Maximum slope rating, stowed position, 2WD
Counterweight uphill 30% (17)
Counterweight downhill 15% (9)
Side slope 25% (14)
Maximum slope rating, stowed position, 4WD
Counterweight uphill 45% (24)
Counterweight downhill 30% (17)
Side slope 25% (14)
Note: Slope rating is subject to ground conditions and adequate traction.
Floor Loading Information
Tire load, maximum 18,000 lbs 8165 kg
Tire contact pressure 100 psi 7.03 kg/cm2, 689 kPa
Occupied floor pressure 301 psf 1469 kg/m2, 14.42 kPa

Where to find BOOM LIFT 85 STICK 4X4 in Vancouver / Surrey

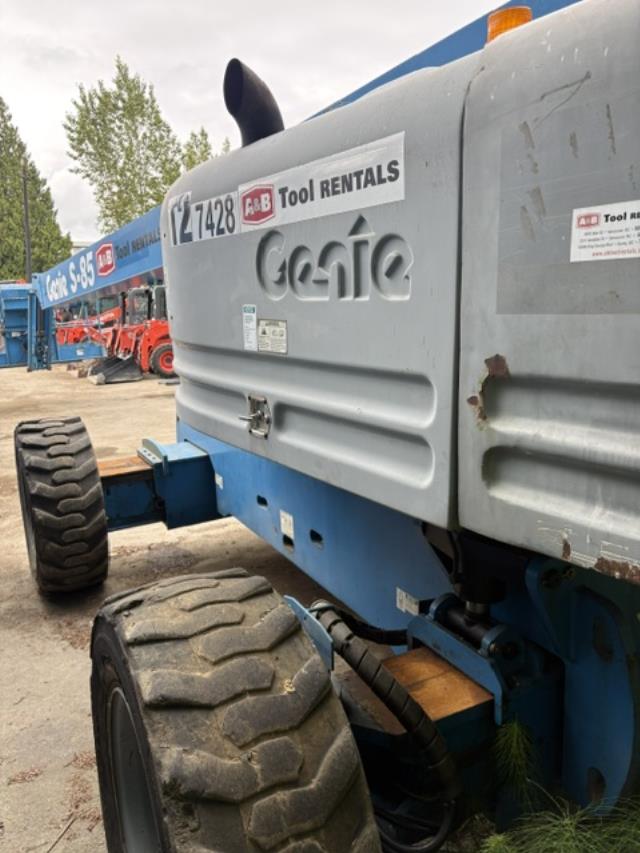

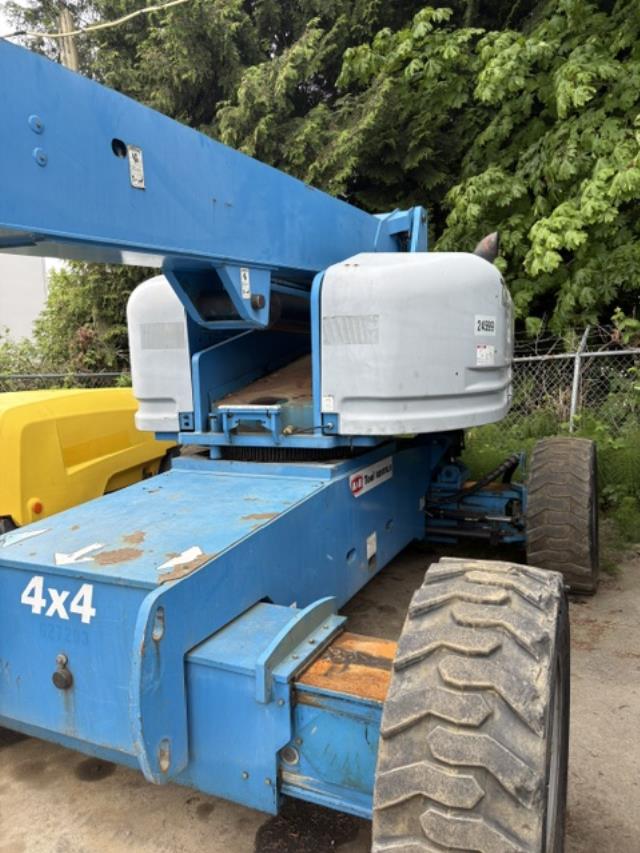

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view
