Used Equipment For Sale

Available only at our Surrey branch at 10498 King George Blvd

BOOM LIFT S-60 - 65 STICK 4X4

Key: 23548#01
Manufacturer: GENIE
Model: S60
Sale Price: $19,000.00
Comments:

2008 GENIE S60
Hours: 4100
Specifications
Platform dimensions, 72 in x 30 in 1.8 m x 76 cm
6 foot (length x width)
Platform leveling self-leveling
Platform rotation 160
AC outlet in platform standard
Hydraulic pressure, maximum 3000 psi 207 bar
Tire size 355/55D 625 - Foam Filled
Maximum slope rating, stowed position, 4WD
Platform downhill 45% / 24
Platform uphill 30% / 17
Side slope 25% / 14
Note: Slope rating is subject to ground conditions and
adequate traction.
Fuel tank capacity 40 gallons 151 liters
Floor loading information
Tire load, maximum 10800 lbs 4899 kg
Tire contact pressure 70 psi 4.92 kg/cm2
483 kPa
Occupied floor pressure 240 psf 1172 kg/m2
11.49 kPa
Note: Floor loading information is approximate and
does not incorporate different option configurations. It
should be used only with adequate safety factors.
Model S-60
Height, working maximum 66 ft 20.3 m
Height, platform maximum 60 ft 18.3 m
Height, stowed maximum 8 ft 11 in 2.72 m
Horizontal reach maximum 50 ft 10 in 15.5 m
Width 8 ft 2 in 2.49 m
Length, stowed 27 ft 11 in 8.5 m
Maximum load capacity 500 lb 227 kg
Maximum load capacity 750 lb 340 kg with proper counterweight configuration
Maximum wind speed 28 mph 12.5 m/s
Wheelbase 8 ft 2 in 2.5 m
Turning radius (outside) 18 ft 2 in 5.5 m
Turning radius (inside) 7 ft 9 in 2.4 m
Turntable rotation (degrees) continuous
Turntable tailswing 4 ft 1.22 m
Drive speeds
Drive speed, stowed, 4WD 3.0 mph 4.8 km/h - 39 ft/7.8 sec 10.4 m/7.8 sec
Drive speed, 0.7 mph 1.1 km/h - raised or extended 40 ft/40 sec 10.3 m/40 sec
Airborne noise emissions 105 dB - Maximum sound level at normal operating workstations
Vibration does not exceed 2.5 m/s2
Ground clearance, center 14 in 37 cm
Ground clearance, axle 13 in 33 cm
Controls 12V DC proportional
Weight: 21493 LBS

Where to find BOOM LIFT S-60 - 65 STICK 4X4 in Vancouver / Surrey

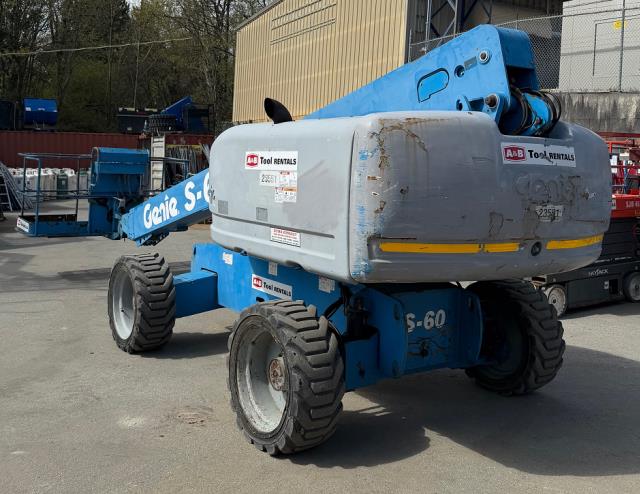

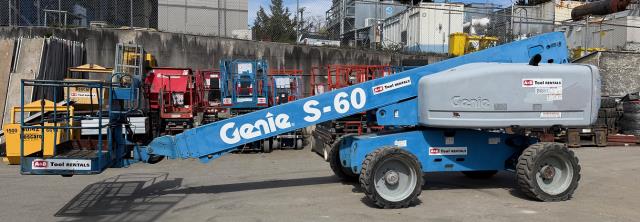

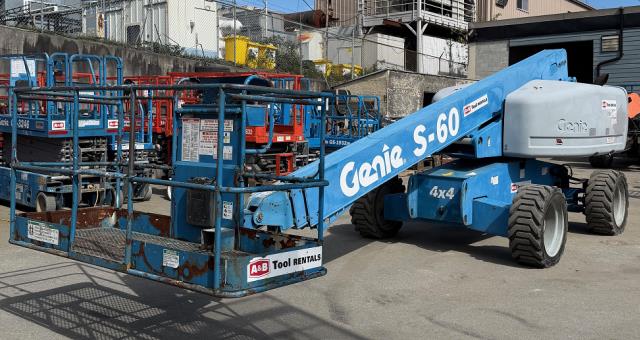

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

* Prices are subject to change.
