BOOM LIFT S-65 XC STICK 4X4 (NEW CSA)


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: $530.00

Weekly: $1,600.00

Monthly: $3,500.00

Quantity: for a period of
day(s) week(s) month(s)

Info
Literature

Specifications
Platform dimensions, 244 cm x 91 cm (96 in x 36 in)
8 foot (length x width)
Platform leveling: self-leveling
Platform rotation 160
AC outlet in platform standard
Hydraulic pressure, maximum 3000 psi 207 bar
Tire size 355/55D 625
High flotation tire size 41/18LL x 22.5, 14 ply
Maximum slope rating, stowed position, 4WD
Platform downhill 45% / 24
Platform uphill 30% / 17
Side slope 25% / 14
Note: Slope rating is subject to ground conditions and
adequate traction.
Fuel Tank Capacity: 35 gallons, 132 liters
Hydraulic Tank Capacity: 151 liters, 40 gallons
Floor loading information
Tire load, maximum 13448 lbs 6100 kg
Tire contact pressure 90 psi 6.3 kg/cm2
620 kPa
Occupied floor pressure 304 psf 1483 kg/m2
14.55 kPa
Note: Floor loading information is approximate and
does not incorporate different option configurations. It
should be used only with adequate safety factors.
Model S60XC

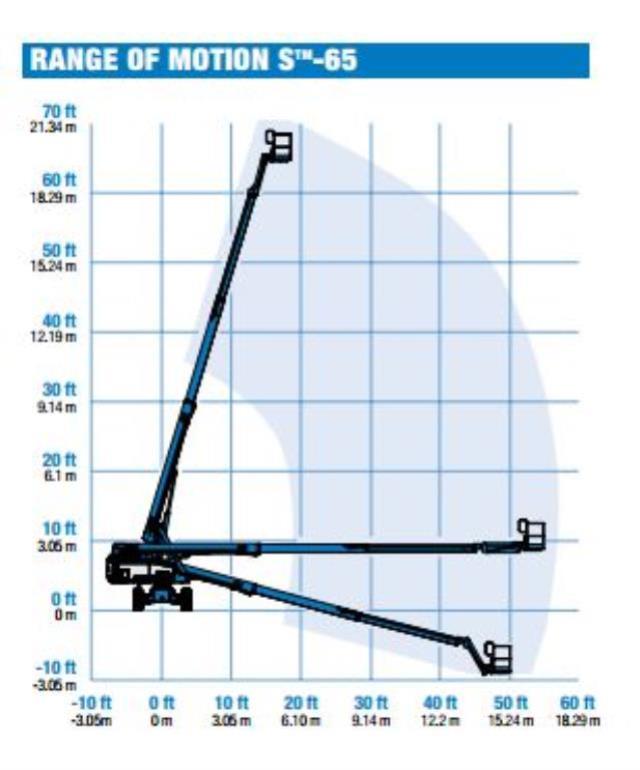

Height, working maximum 71.55' , 21.81 m
Height, platform maximum 65', 19.81 m
Height, stowed maximum 9.19 ft, 2.8 m
Horizontal reach maximum 54.16 ft, 16.51 m
Width 8 ft 2 in, 2.49 m
Length, stowed 32 ft, 9.76 m
Maximum load capacity-Restricted rang of motion: 1000 lb, 454 kg
Maximum load capacity-Unrestricted: 660 lb 300 kg
Maximum wind speed 28 mph, 45 km/hr, 12.5 m/s
Wheelbase 8 ft 2 in 2.5 m
Turning radius (outside) 18 ft, 5.5 m
Turning radius (inside) 7.87 ft, 2.4 m
Turntable rotation (degrees) continuous
Turntable tailswing 3.74 ft 1.14 m
Drive speeds
Drive speed, stowed, 4WD 3.0 mph, 4.8 km/h - 40 ft/7.2 sec 12.2 m/9.2 sec
Drive speed, raised or extended, 0.7 mph, 1.1 km/h 40 ft/40 sec 12.2 m/40 sec
Airborne noise emissions
105 dBA - Maximum sound level at normal operating workstations
83 dBA - At Ground Workstation
79 dBA - At Platform Workstation
Ground clearance, center 16.29 in, 41.4 cm
Ground clearance, axle 10 in, 25.4 cm
Controls 12V DC proportional
Weight: 11412 kg, 25159 LBS

GENIE S-65 XC Operators Manual
